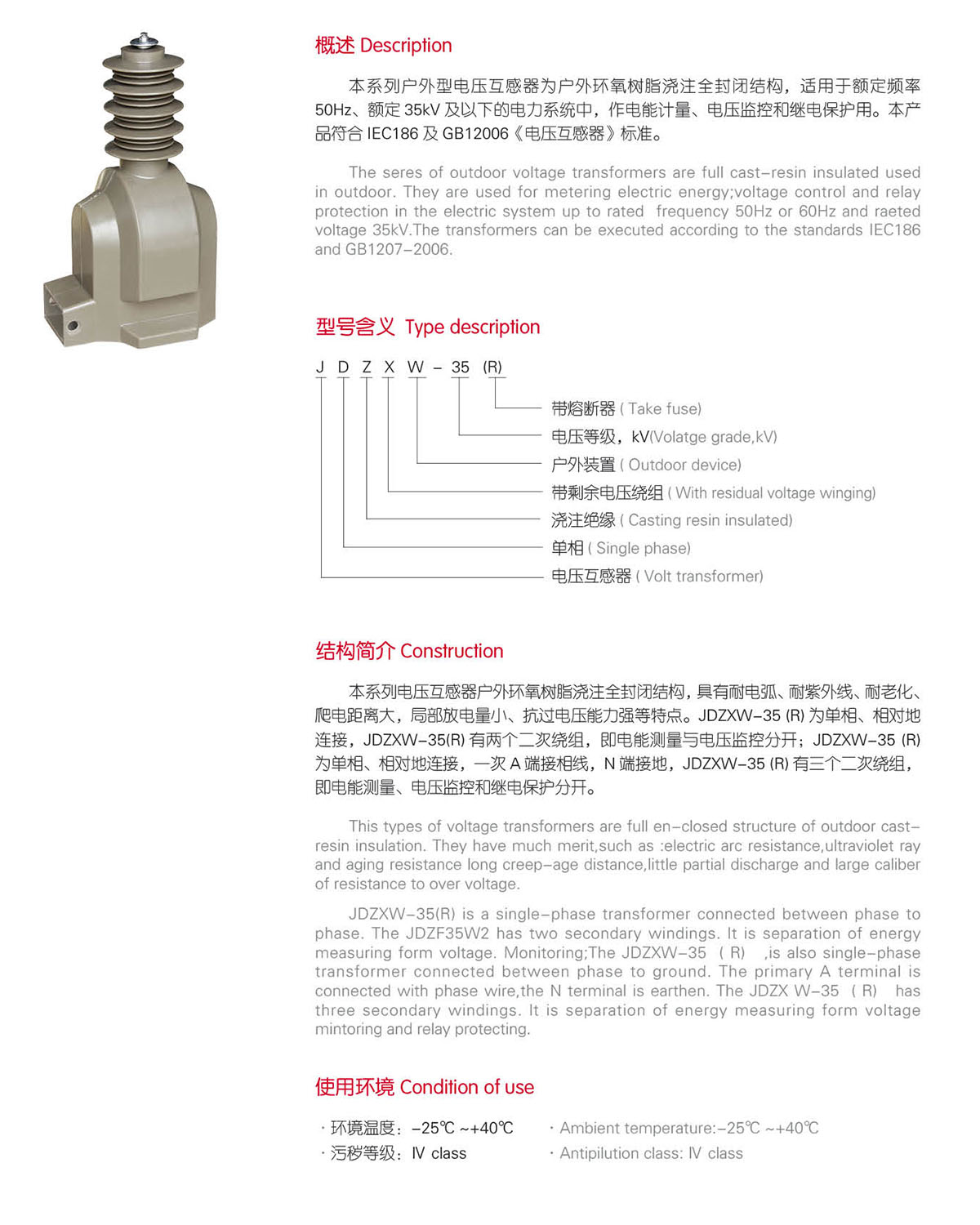

一、概述
本系列戶外型電壓互感器為戶外環氧樹脂澆注全封閉結構，適用于額定頻率50Hz、額定35kV及以下的電力系統中，作電能計量、電壓監控和繼電保護用。本產品符合IEC186及 GB12006《電壓互感器》標準。
The seres of outdoor voltage transformers are full cast-resin insulated usedin outdoor. They are used for metering electric energy;voltage control and relayprotection in the electric system up to rated frequency 50Hz or 60Hz and raetedvoltage 35kV.The transformers can be executed according to the standards IEC186and GB1207-2006.

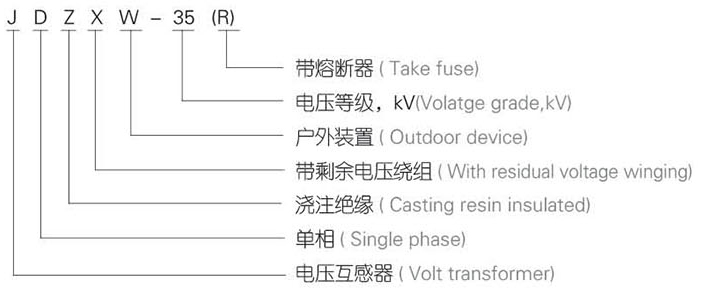

二、型號含義
三、結構簡介
本系列電壓互感器戶外環氧樹脂澆注全封閉結構,具有耐電弧、耐紫外線、耐老化、爬電距離大，局部放電量小、抗過電壓能力強等特點。JDZXW-35(R)為單相、相對地連接，JDZXW-35(R)有兩個二次繞組，即電能測量與電壓監控分開;JDZXW-35(R)為單相、相對地連接，一次A端接相線,N端接地，JDZXW-35(R)有三個二次繞組，即電能測量、電壓監控和繼電保護分開。
This types of voltage transformers are full en-closed structure of outdoorcast-
resin insulation. They have much merit,such as :electric arc resistance,ultraviolet rayand aging resistance long creep-age distance,little partial discharge and large caliberof resistance to over voltage.
JDZXW-35(R) is a single-phase transformer connected between
phase.The JDZF35W2 has two secondary windings. It is separation of energymeasuring form voltage. Monitoring;The JDZXW-35 (R),is also single-phasetransformer connected between phase to ground. The primary A terminal isconnected with phase wire, the N terminal is earthen.The JDZX W-35(R) hasthree secondary windings. It is separation of energy measuring form voltagemintoring and relay protecting.
四、使用環境
使用環境 Condition of use
·環境溫度:-25℃~+40℃
·Ambient temperature:-25℃ ~+40℃
·污穢等級:IV class
·Antipilution class: lV class
