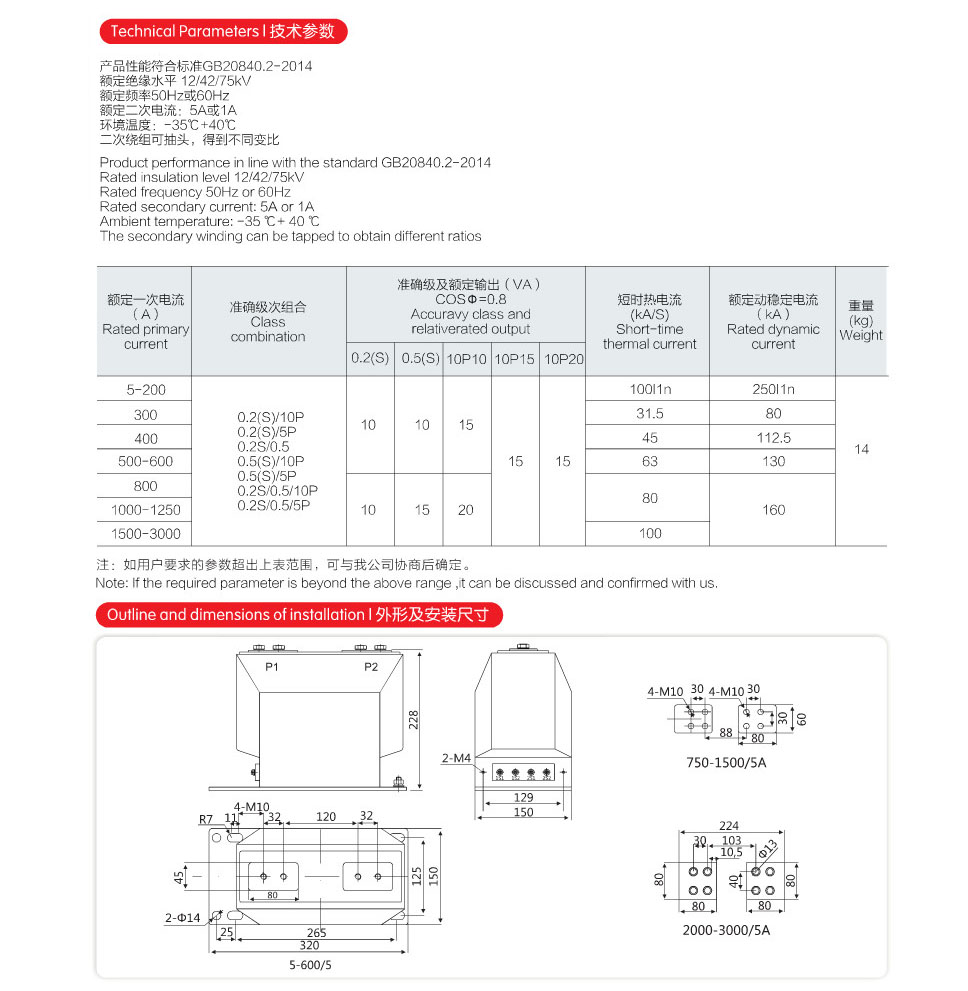

一、技術參數
產品性能符合標準GB20840.2-2014
額定絕緣水平12/42/75kV
額定頻率50Hz或6OHz
額定二次電流:5A或1A
環境溫度:-35℃+40℃
二次繞組可抽頭,得到不同變比
Product performance in line with the standard GB20840.2-2014
Rated insulation level 12/42/75kV
Rated frequency 50Hz or 60Hz
Rated secondary current: 5A or 1A
Ambient temperature: -35℃+40 ℃
The secondary winding can be tapped to obtain different ratios
|
額定一次電流 (A）
Rated primary current
|
準確級次組合
Class combination
|
準確級及額定輸出(VA)
COSΦ=0.8 Accuravy class and relativerated output
|
短時熱電流 (kA/S)
Short-time thermal current
|
額定動穩定電流 (kA)
Rated dynamic current
|
重量
weight
|
|
0.2(S)
|
0.2(S)
|
10P10
|
10P15
|
10P15
|
|
5-200
|
0.2(S）/10P 0.2(S）/5P 0.2S/0.5 0.5(S）/10P 0.5(S）/5P 0.2S/0.5/10P 0.2S/0.5/5P
|
10
|
10
|
15
|
15
|
15
|
100l1n
|
250l1n
|
14
|
|
300
|
31.5
|
80
|
|
400
|
45
|
112.5
|
|
500-600
|
63
|
130
|
|
800
|
10
|
15
|
20
|
80
|
160
|
|
1000-1250
|
|
1500-3000
|
100
|

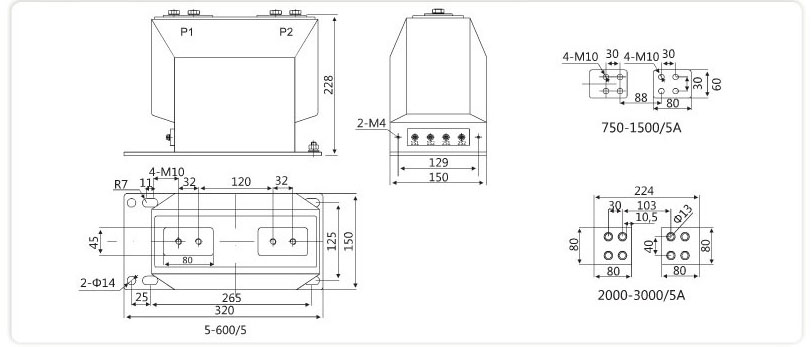

二、外形及安裝尺寸
